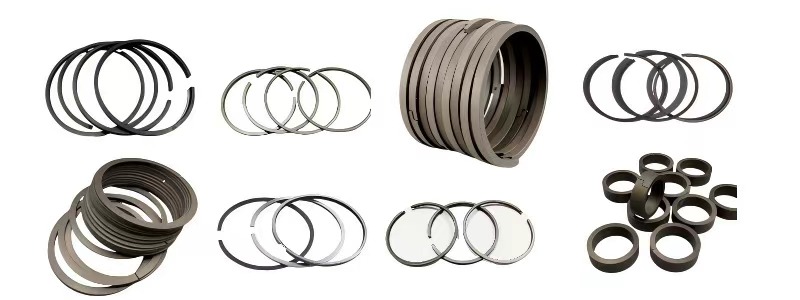

Introduction to Piston Rings

Piston rings are metal elastic rings installed in piston grooves, used to seal the combustion chamber, regulate oil, and control heat transfer. They are one of the core components of internal combustion engines.



Core Functions

Function	Description	Importance
Sealing the Combustion Chamber	Prevents gas leakage into the crankcase	Prevents gas leakage into the crankcase
Oil Control	Scrapes excess oil from cylinder walls, forming an oil film	Scrapes excess oil from cylinder walls, forming an oil film
Heat Transfer	Conducts piston heat to the cylinder walls	Prevents piston overheating and damage
Support and Stability	Reduces impact between piston and cylinder walls	Reduces impact between piston and cylinder walls



Material Types

Material Type	Characteristics	Applicable Engines
Gray Cast Iron	Low cost, good self-lubrication	Standard gasoline and diesel engines
Ductile Cast Iron	High strength, good wear resistance	Heavy-duty diesel engines
Steel Rings	High strength, fatigue resistance	High-performance engines
Coated Rings	Special surface treatment, reduced friction and wear	Modern high-efficiency engines



 Piston Ring Types

Type	Installation Position	Main Function	Characteristics
Compression Rings	Upper ring groove	Seal combustion gases	Withstand high temperature and pressure
Oil Rings	Lower ring groove	Control oil	Designed with oil return holes
Combination Rings	Middle ring groove	Combined sealing and oil control	Multi-functional design





Performance Parameters Table

Performance Indicator	Compression Rings	Oil Rings	Oil Rings
Radial Pressure (MPa)	0.1-0.3	0.3-0.8	ISO 6621
End Gap (mm)	0.2-0.5	0.1-0.3	ISO 6624
Hardness (HV)	200-400	300-500	ISO 6507
ISO 6507	100-150	120-180	ISO 6892



Design Requirements

1. Sealing Requirements:

   · Ensure appropriate radial pressure

   · Control end gap

   · Ensure proper ring and groove fit

2. Wear Resistance Design:

   · Surface treatment (chromium plating, molybdenum spraying, etc.)

   · Material selection

   · Structural optimization

3. Thermal Management:

   · Heat conduction path design

   · Thermal expansion compensation

   · Thermal stress control



Installation Precautions

1. Pre-Installation Inspection:

   · Check groove cleanliness

   · Measure ring end gap

   · Confirm ring installation sequence

2. Installation Tools:

   · Use dedicated piston ring expander

   · Avoid over-expansion

   · Prevent ring deformation

3. Installation Key Points:

   · Install in correct sequence

   · Stagger ring end gaps

   · Ensure rings can rotate freely



Common Failure Modes

1. Wear Failure:

   · Normal wear

   · Abnormal wear (abrasive wear, corrosive wear)

2. Fracture Failure:

   · Fatigue fracture

   · Overload fracture

3. Sticking Failure:

   · Carbon deposit sticking

   · Overheating sticking



Maintenance

1. Regular Inspection:

   · Check compression pressure

   · Observe exhaust smoke color

   · Monitor oil consumption

2. Replacement Standards:

   · End gap exceeds limits

   · Loss of elasticity

   · Severe wear

3. Usage Recommendations:

   · Use appropriate specification oil

   · Avoid engine overheating

   · Regularly replace air filters



As key components of engines, piston rings directly affect engine power, efficiency, and service life. Through reasonable design, correct installation, and proper maintenance, piston rings can perform optimally and extend engine service life.
